I-7000/M-7000 시리즈

제품명: I-7000/M-7000 시리즈

용도: 선택 가이드

특성: RS-485 원격 I/O 모듈

제조사: ICPDAS(대만)

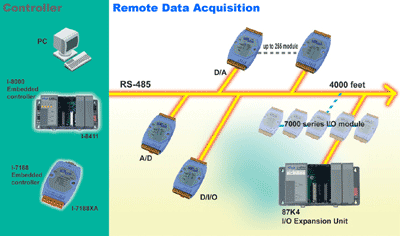

I-7000 시리즈는 DCON 프로토콜을 지원하는 네트워크 데이터 수집 및 제어 모듈 제품군입니다.

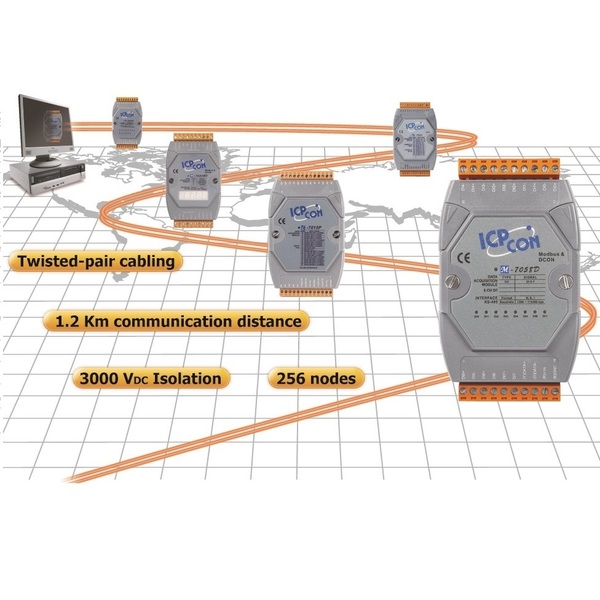

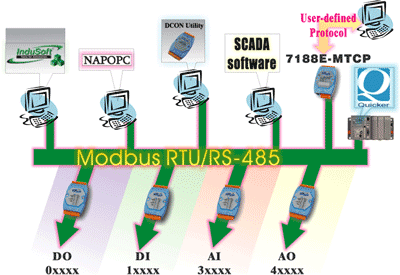

M-7000 시리즈는 Modbus RTU 및 DCON 프로토콜을 지원하는 네트워크 데이터 수집 및 제어 모듈 제품군으로써 Modbus RTU 프로토콜을 통해 가장 널리 사용되는 SCADA / HMI 소프트웨어 및 PLC와 쉽게 통신 할 수 있습니다.

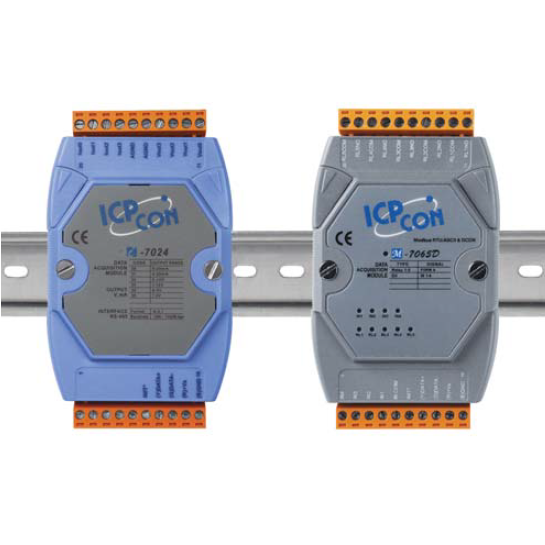

I-7000 시리즈와 M-7000 시리즈와 동일한 폼 팩터(form factor)를 가지고 있습니다.

모델명		AI					DO 채널	DI 채널
아날로그 입력 (Analog Input)
DCON	DCON, Modbus/RTU	채널	전압 & 전류 입력	센서 입력	고속 샘플링	고전압 보호	DO 채널	DI 채널
-	M-7004-G	4	-	2/3-wire DS18B20	-	-	-	-
I-7005-G	M-7005-G	8	-	Thermistor	-	-	6	-
I-7011D	M-7011D-G	1	±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA	Thermocouple: J, K, T, E, R, S, B, N, C	-	-	2	1
I-7011PD	-	1		Thermocouple: J, K, T, E, R, S, B, N, C, L, M		-	2	1
I-7018P-G	-	8		Thermocouple: J, K, T, E, R, S, B, N, C, L, M		±80 VDC	-	-
I-7012D	-	1	±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA	-	-	-	2	1
I-7012FD	-	1	±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA	-	100 Hz	-	2	1
I-7013D	-	1	-	2/3/4-wire RTD: Pt100, Pt1000, Ni120	-	-	-	-
-	M-7013PD-G	1					2	1
I-7033D-G	M-7033D-G	3					-	-
I-7014D	-	1	±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA	Transmitter	-	-	2	1
I-7015-G	M-7015-G	6	-	2/3-wire RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000	-	-	-	-
I-7015P-G	M-7015P-G	6	-	2/3-wire RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000	-	-	-	-
I-7016D-G	M-7016D-G	2	-	4-wire Full-Bridge Strain Gauge	-	-	4	1
I-7016PD	-	1	-	6-wire Full-Bridge Strain Gauge	-	-	4	1
I-7017-G	M-7017-G	8	±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA	-	-	-	-	-
I-7017F-G	-				60 Hz	-
I-7017R-G	M-7017R-G				60 Hz	±200 VDC
I-7017Z-G	M-7017Z-G	10/20			-	-
I-7017C	M-7017C-G	8	±20 mA, 0 ~ 20 mA, 4 ~ 20 mA	-	-	-	-	-
I-7017FC-G	-				60 Hz	-
I-7017RC-G	M-7017RC-G				60 Hz	±200 VDC
-	M-7017mC-16-G (Note 1)	16			200 Hz	-
I-7017R-A5-G	M-7017R-A5-G	8	±50 V, ±150 V	-	50 Hz	±200 VDC	-	-
-	M-7017RMS-G (Note 2)	8	0 ~ +150 mVrms, 0 ~ +500 mVrms, 0 ~ +1 Vrms, 0 ~ +5 Vrms, 0 ~ +10 Vrms	-	-	-	-	-
I-7018-G	M-7018-G	8	±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA	Thermocouple: J, K, T, E, R, S, B, N, C	-	-	-	-
I-7018R-G	M-7018R-G	8				200 VDC
-	M-7018-16-G	16				-
I-7018Z-G/S	M-7018Z-G/S	10		Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710		±200 VDC
I-7019R-G	M-7019R-G	8	±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA	Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710	-	±200 VDC	-	-
-	M-7019Z-G/S	10		Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710	-	-	-	-

Note 1 : With Date Logger

Note 2 : True RMS 입력 모듈

모델명		AO				DO 채널	DI 채널
아날로그 출력 (Analog Output)
DCON	DCON, Modbus/RTU	채널	해상도	전압 입력	전류 입력	DO 채널	DI 채널
I-7021-G	-	1	12-bit	0 ~ +10 V	0 ~ +20 mA, +4 ~ +20 mA	-	-
I-7021P-G	-	1	16-bit	0 ~ +10 V
I-7022-G	M-7022-G	2	12-bit	0 ~ +5 V, 0 ~ +10 V
I-7024-G	M-7024-G	4	14-bit	0 ~ +5 V, 0 ~ +10 V, ±5 V, ±10 V	0 ~ +20 mA, +4 ~ +20 mA	-	-
I-7024R-G	M-7024R-G		14-bit			-	5
-	M-7024UD-G		16-bit			4	4
-	M-7024L-G		12-bit			-	-
-	M-7028D-G	8	12-bit			-	-

모델명		AI		AO		DO		DI/Counter
다기능 입출력 (Multifunction I/O)
DCON	DCON, Modbus/RTU	채널	전압 & 전류 입력	채널	전압 & 전류 출력	채널	타입	채널	타입
-	M-7002-G	4	±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA	-	-	4	Power Relay	5	Wet
-	M-7003-G	8		-	-	4	Power Relay	-	-
-	M-7026-G	6		2	0 ~ +5 V, 0 ~ +10 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA	3	Open Collector	3	Dry
-	M-7024UD-G	-	-	4	0 ~ +5 V, 0 ~ +10 V, ±5 V, ±10 V 0 ~ +20 mA, +4 ~ +20 mA	4	Open Collector	4	Dry, Wet

모델명		DO				DI
디지털 입출력 (Digital I/O)
DCON	DCON, Modbus/RTU	채널	타입	Sink/Source	최대 부하 전류	채널	타입	Sink/Source	ON 전압 레벨
I-7041D	M-7041D-G	-	-	-	-	14	Wet	Sink/Source	I-7041D: +1 VDC Max. M-7041D-G: +4 ~ +30 VDC
-	M-7041D-A5-G								+68 ~ +150 VDC
I-7041PD-G	M-7041PD-G								I-7041PD-G: +11 VDC Max. M-7041PD-G: +19 ~ +30 VDC
I-7042D	-	13	Open Collector	Sink	100 mA	-	-	-	-
I-7043D-G	M-7043D-G	16			100 mA	-	-	-	-
I-7044D	-	8			375 mA	4	Wet	Sink/Source	+1 VDC Max.
I-7045D-G	M-7045D-G	16		Source	650 mA	-	-	-	-
I-7045D-NPN-G	M-7045D-NPN-G	16		Sink	700 mA	-	-	-	-
-	M-7046D-G	-	-	-	-	15	Wet	Sink/Source	+3.5 ~ +50 VDC
I-7050D-G	M-7050D-G	8	Open Collector	Sink	30 mA	7	Dry, Wet	Sink/Source	-
I-7050AD-G	-	8	Open Collector	Source	50 mA	7	Dry, Wet	Sink	+4 ~ +30 VDC
I-7051D-G	M-7051D-G	-	-	-	-	16	Dry, Wet	Sink/Source	+10 ~ +50 VDC
I-7052D-G	M-7052D-G	-	-	-	-	8	Wet	Sink/Source	+4 ~ +30 VDC
I-7053D_FG-G	M-7053D-G	-	-	-	-	16	Dry	Source	-
-	M-7054D-G	DI+DO=16	Open Collector	Sink	100 mA	DI+DO=16
-	M-7054PD-G	DI+DO=16	Open Collector	Sink	500 mA	DI+DO=16
I-7055D-G	M-7055D-G	8	Open Collector	Source	650 mA	8	Dry, Wet	Sink/Source	+10 ~ +50 VDC
I-7055D-NPN-G	M-7055D-NPN-G		Open Collector	Sink	700 mA
-	M-7055UD-G		Push-Pull	Sink/Source	500 mA
I-7058D-G	M-7058D-G	-	-	-	-	8	Wet	Sink/Source	+80 ~ +250 VAC/VDC
I-7059D-G	M-7059D-G	-	-	-	-	8			+10 ~ +80 VAC +15 ~ +80 VDC
-	M-7058-16-G	2	Isolated Open Collector	Sink	600 mA	16			+80 ~ +250 VAC/VDC
-	M-7058D-16-G								+80 ~ +250 VAC/VDC
-	M-7059-16-G								+10 ~ +80 VDC +15 ~ +80 VAC
-	M-7059D-16-G								+10 ~ +80 VDC +15 ~ +80 VAC

모델명		Relay Output				DI
릴레이 출력 및 디지털 입력 (Relay Output & Digital Input)
DCON	DCON, Modbus/RTU	채널	타입	서지 강도	접점 정격	채널	타입	Sink/Source
I-7060D-G	M-7060D-G	2 x Form A, 2 x Form C	Signal Relay	1500 VDC	Form A: 0.6 A @ 125 VAC 2 A @ 30 VDC Form C: 0.6 A @ 125 VAC 2 A @ 30 VDC	4	Wet	Sink/Source
-	M-7060PD-G	2 x Form A, 2 x Form C	Power Relay	2500 VDC	Form A: 16 A @ 250 VAC 10 A @ 30 VDC Form C: NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC	4	Wet	Sink/Source
I-7061D-G	M-7061D-G	12 x Form A	Power Relay	3000 VDC	Form A: 5 A @ 250 VAC 5 A @ 30 VDC	-	-	-
I-7063D	-	3 x Form A	Power Relay	4000 VDC	Form A: 5 A @ 250 VAC 5 A @ 30 VDC	8	Wet	Sink/Source
I-7063AD	-		AC-SSR	2500 VDC	Form A: 24 ~ 265 VAC @ 1A 5 A @ 30 VDC
I-7063BD	-		DC-SSR	3500 VDC	Form A: 3 ~ 30 VDC @ 1A 5 A @ 30 VDC
-	M-7064D-G	8 x Form A	Signal Relay	2000 VDC	Form A: 2 A @ 30 VDC 0.24 A @ 220 VDC 0.25 A @ 250 VAC	-	-	-
I-7065D-G	M-7065D-G	5 x Form A	Power Relay	4000 VDC	Form A: 5 A @ 250 VAC 5 A @ 30 VDC	4	Wet	Sink/Source
I-7065AD	-		AC-SSR	2500 VDC	Form A: 24 ~ 265 VAC @ 1A 5 A @ 30 VDC
I-7065BD	M-7065BD-G		DC-SSR	3500 VDC	Form A: 3 ~ 30 VDC @ 1A 5 A @ 30 VDC
I-7066D	-	7 x Form A	PhotoMOS Relay	-	0.13 A @ 350 V	-	-	-
-	M-7066PD-G		PhotoMOS Relay	-	1 A @ 80 V
I-7067D-G	M-7067D-G		Signal Relay	1500 VDC	0.5 A @ 120 VAC 1 A @ 24 VDC
-	M-7068D-G	4 x Form A, 4 x Form C	Signal Relay	2000 VDC	Form A: 2 A @ 30 VDC 0.24 A @ 220 VDC 0.25 A @ 250 VAC Form C: 2 A @ 30 VDC 0.24 A @ 220 VDC 0.25 A @ 250 VAC	-	-	-
-	M-7069D-G	4 x Form A, 4 x Form C	Power Relay	2000 VDC	Form A: 6 A @ 35 VDC 6 A @ 240 VAC Form C: 5 A @ 30 VDC 5 A @ 250 VAC	-	-	-

모델명		Encoder/Frequency/Counter Input						DO
엔코더/빈도/카운터 (Encoder/Frequency/Counter)
DCON	DCON Modbus/RTU	채널	Encoder	Counter	Frequency	해상도	접점 속도 (최대)	채널	타입
I-7080D	M-7080D-G	2	-	Up Counter	Yes	32-bit	100 kHz	2	Open Collector
I-7080BD-G	M-7080BD-G	2	-	Up Counter	Yes	32-bit	100 kHz	2	Open Collector
I-7083D-G	-	3	CW/CCW, Dir/Pulse, AB Phase	Up/Down	-	32-bit	1 MHz	-	-
I-7083BD-G	-	3		Up/Down	-		1 MHz
-	M-7084-G	4/8		Up or Up/Down	Yes		200 kHz
I-7088D-G	M-7088D-G	8	-	Up Counter	-	32-bit	1 MHz	8	PWM, TTL
I-7088D-G/S	M-7088D-G/S	8		Up Counter		32-bit	1 MHz	8	PWM, TTL
-	M-7088-16-G	-		-		-	-	16	PWM, 50V/1 A
