모델명 | tDS-712 tDS-712i tDSM-712 tDS-2212 |
tDS-722 tDS-722i |
tDS-732 tDS-732i |
tDS-715 tDS-715i tDS-2215 |
tDS-725 tDS-725i tDS-2225 |
tDS-735 tDS-735i tDS-2235 |
tDS-718 tDS-718i tDS-2218 |
tDS-718i-D | tDS-724 tDS-724i |
tDS-734 tDS-734i |
||
CPU 모듈 | ||||||||||||
CPU | 32-bit MCU | |||||||||||
통신 인터페이스 | ||||||||||||
Ethernet | 700 시리즈 | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) | ||||||||||
2200 시리즈 | 2포트 10/100 Base-TX Ethernet Switch with LAN Bypass, RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) | |||||||||||
PoE | IEEE 802.3af, Class 1 | |||||||||||

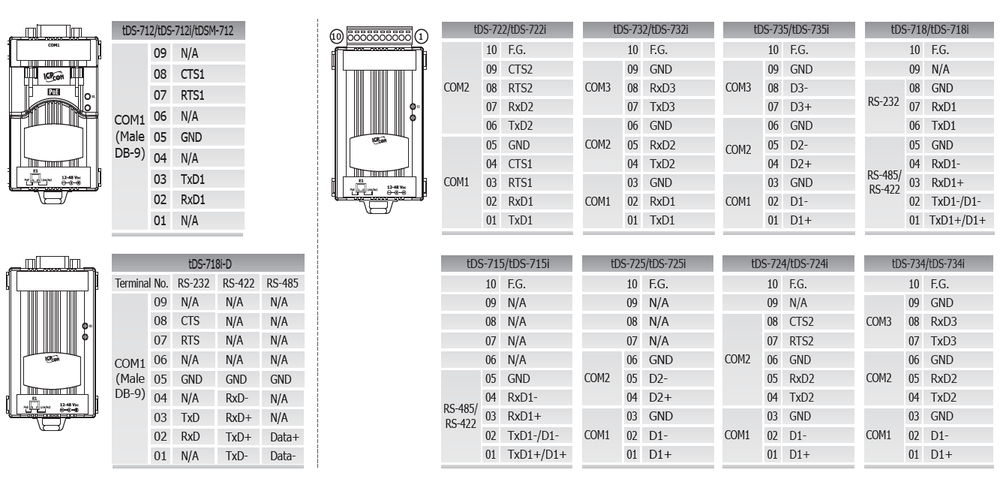

COM 포트 | 1 × RS-232 | 2 × RS-232 | 3 × RS-485 | 1 × RS-422/RS-485 | 2 × RS-485 | 3 × RS-485 | 1 × RS-232 or RS-422/485 | 1 × RS-485 1 × RS-232 |
1 × RS-485 2 × RS-232 |
|||
Self-Tuner | – | Yes, 자동으로 RS-485 방향 제어 | ||||||||||
전원 절연(Isolation) | 1000 VDC for tDS-722i/ 732i /718i-D only | |||||||||||
신호 절연(Isolation) | 3000 VDC for tDS-712i/ 715i/ 725i/ 735i/ 718i /724i /734i only | |||||||||||
ESD 보호 | +/-4 kV | |||||||||||
COM 포트 Capability (16C550 or compatible UART) | ||||||||||||
Data Bit | 5, 6, 7, 8 | |||||||||||
Parity | None, Odd, Even, Mark, Space | |||||||||||
Stop Bit | 1, 2 | |||||||||||
Baud Rate | 최대 115200 bps | |||||||||||
기구 | ||||||||||||
커넥터 | 700 시리즈 | Male DB-9 x 1 | 10-핀 탈착식 터미널 블록 x 1 | Male DB-9 x 1 | 10-핀 탈착식 터미널 블록 x 1 | |||||||
2200 시리즈 | 5-핀 탈착식 터미널 블록 x 3 | |||||||||||
치수 (W x H x D) | 700 시리즈 52 mm x 95 mm x 27 mm, (tDS-712: 52 mm x 90 mm x 27 mm), (tDSM-712: 75 mm x 83 mm x 24 mm) 2200 시리즈 90mm x 110mm x 33mm (커넥터 제외) |
|||||||||||
설치 | DIN-Rail mounting | |||||||||||
케이스 | 플라스틱 (tDSM-712 금속) | |||||||||||
작동 환경 | ||||||||||||
작동 온도 | -25 °C to +75 °C | |||||||||||
보관 온도 | -30 °C to +80 °C | |||||||||||
습도 | 10 to 90 %,non-condensing | |||||||||||
전원 | ||||||||||||
입력 범위 | IEEE 802.3af, Class 1 for PoE; +12 ~ 48 VDC for DC Jack | |||||||||||
소비 전력 | 0.07 A @ 24 VDC |

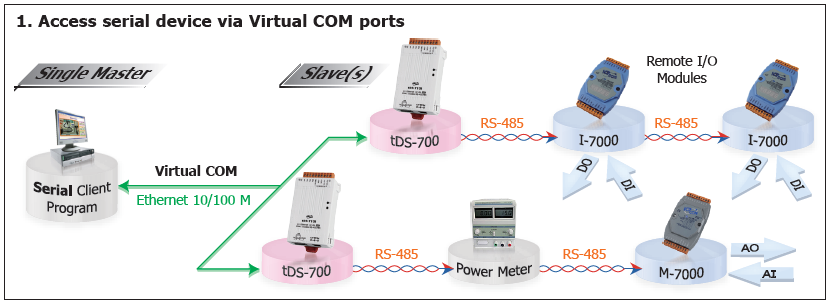

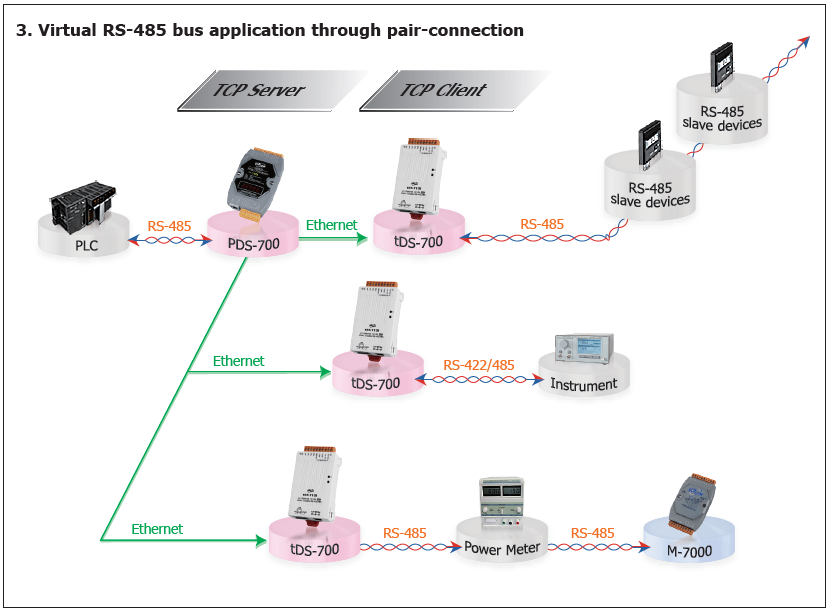

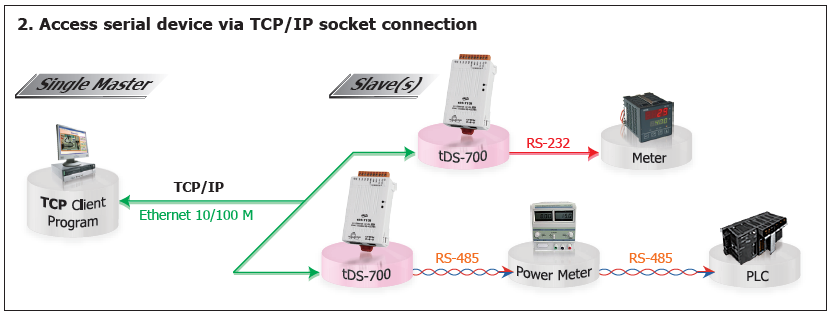

tDS-700 시리즈 (Tiny Device Server with PoE and DC jack) : CA-002 케이블 포함.
|

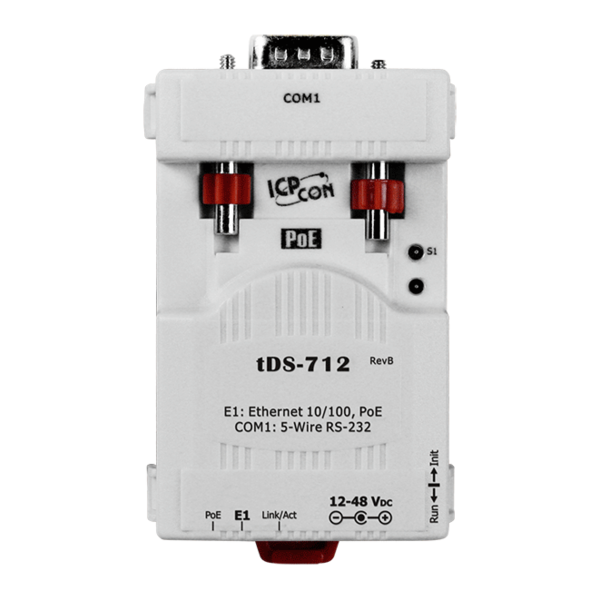

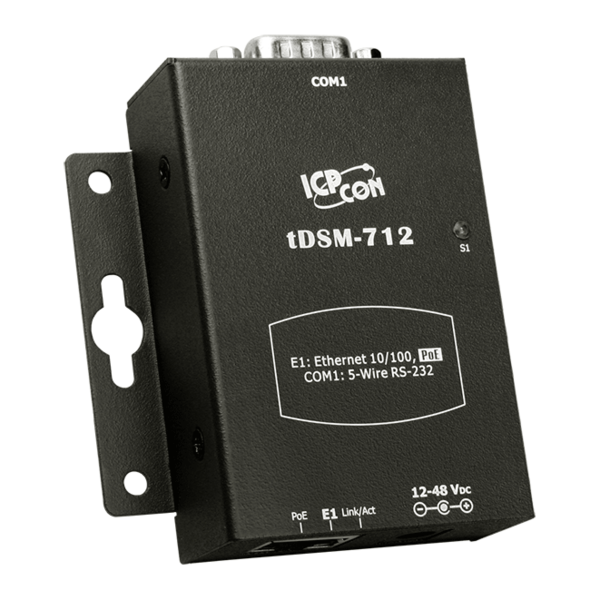

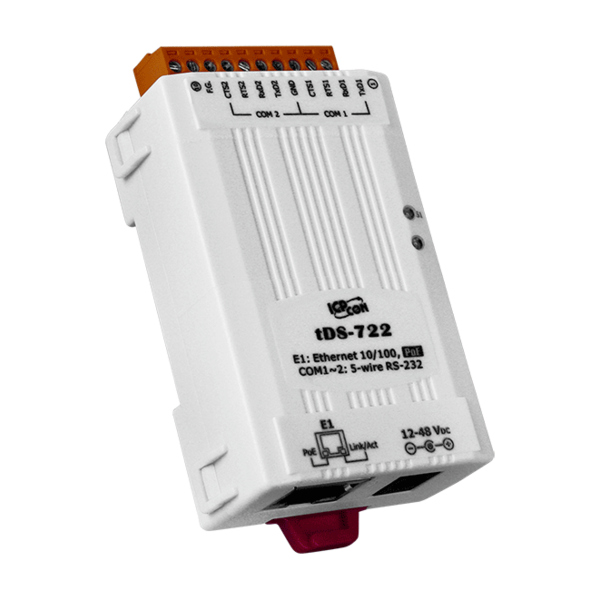

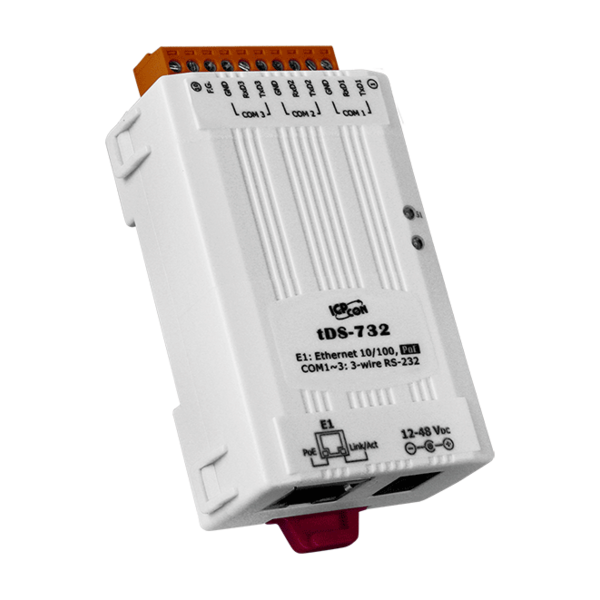

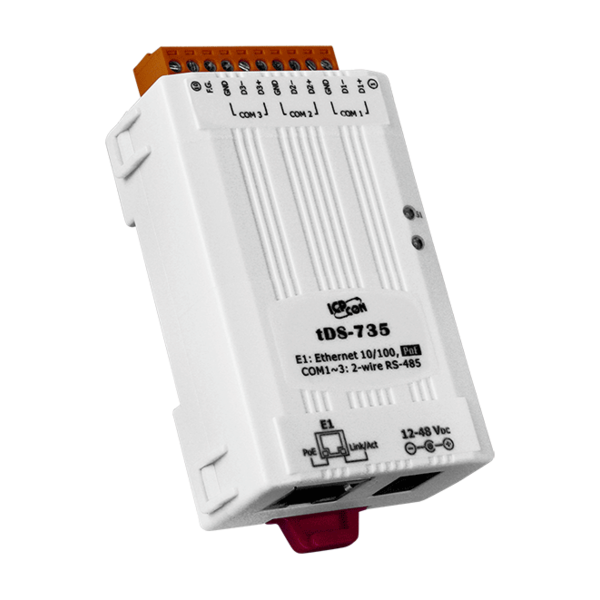

|||||||||
모델명 (Non-Isolated) | 모델명 (Isolated) | 케이스 | RS-232 | RS-422 | RS-485 | COM1 | COM2 | COM3 | |
---|---|---|---|---|---|---|---|---|---|
tDS-712 | tDS-712i | Plastic | 1 | - | - | 5-wire RS-232 | - | ||
tDSM-712 | - | Metal | |||||||
tDS-722 | tDS-722i | Plastic | 2 | - | - | 5-wire RS-232 | 5-wire RS-232 | - | |
tDS-732 | tDS-732i | Plastic | 3 | - | - | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | |
tDS-715 | tDS-715i | Plastic | - | 1 | 2-wire RS-485 4-wire RS-422 |
- | |||
tDS-725 | tDS-725i | Plastic | - | - | 2 | 2-wire RS-485 | 2-wire RS-485 | - | |
tDS-735 | tDS-735i | Plastic | - | - | 3 | 2-wire RS-485 | 2-wire RS-485 | 2-wire RS-485 | |
tDS-718 | tDS-718i | Plastic | 1 | 3-wire RS-232 | - | - | |||
2-wire RS-485 4-wire RS-422 |
|||||||||
- | tDS-718i-D | Plastic | 1 | 5-wire RS-232 | - | - | |||
2-wire RS-485 4-wire RS-422 |
|||||||||
tDS-724 | tDS-724i | Plastic | 1 | - | 1 | 2-wire RS-485 | 5-wire RS-232 | - | |

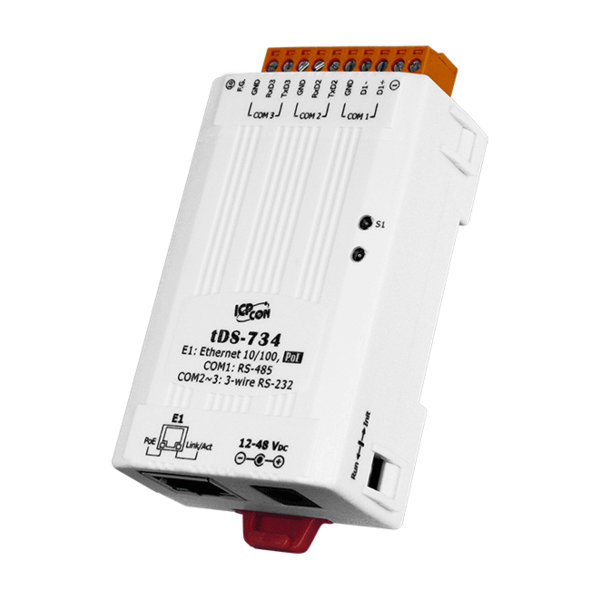

tDS-734 | tDS-734i | Plastic | 2 | - | 1 | 2-wire RS-485 | 3-wire RS-232 | 3-wire RS-232 |
